Application Description:
Paver and Patio applications offer many design and construction challenges to the protection of the house or building from moisture invasion.J•DRAIN drainage composites are designed to enhance the flow of water off the waterproofing membrane to eliminate the potential penetration of moisture into building.

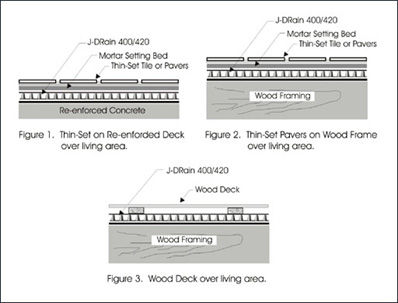

J•DRAIN drainage composites are engineered to be installed under the Pavers or on Patios to reduce hydrostatic pressure and to protect the waterproofing membrane while efficiently channeling the water away. The three dimensional core creates a high compressive strength and high flow capacity drainage channel and the heat fused filter fabric prevents soil intrusion into the flow channel. The use of a J•DRAIN drainage composite shortens the construction process offering a cost savings.
Product Recommendation
Standard recommendations. Please contact a JDR representative for the product to meet specific requirements:
J•DRAIN 150
J•DRAIN 400/420
J•DRAIN 700/720
J•DRAIN 302
Product Brochure
Please click on below brochure or data sheet for printable pdf:
CAD Details
Please click on below detail available in either CAD or pdf format:
Paver h10 004: | CAD |
---|
NES evaluated.
Visit Installation Instructions or Architectural Specifications & MSDS for more info.
